四通道稀釋器 DC 10000

DC 10000 dilution cascade with electrical operating pump

收起內容 down Created with Sketch.
產品諮詢
  • 說明

The DC 10000 consists of four cascaded special dilution systems with the dilution factor 1:10. The DC 10000 dilution cascade has one aerosol inlet and four aerosol outlets. Depending on which aerosol outlet is connected to the measuring device, the aerosol with the dilution factors 1:10, 1:100, 1:1,000 or 1:10,000 are diluted and measured.

The DC 10000 can be operated with all common optical particle counters (OPC) according to ISO 12501-4 or optical aerosol spectrometers (OAS) according to ISO 12501-1. The DC 10000 can be used up to a particle size of approx. 5 µm.

Fig. 1: Overview of the DC 10000, front view

Functional principle

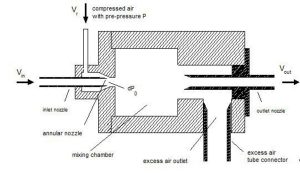

Fig. 2: Functional principle

Particle-free air with the volume flow Vcirculates through an annular passage around the suction nozzle. Thus, according to Bernoulli, a volume flow VAn is generated in the suction nozzle.

The dilution factor VF is calculated according to the formula:

Fig. 3: Formula for the dilution factor VF.

The DC 10000 needs no compressed air connection. So only an electrical power supply is necessary for operation.

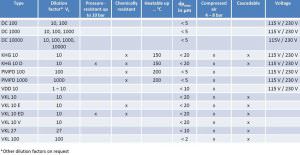

Table 1:  Technical characteristics of Palas® dilution systems
